Saturated steam autoclaves



This autoclave is well-adapted for any kind of decontamination process of packaged or not packaged porous products: litters or food for laboratory animals, contaminated textiles, medical devices.

Functioning

It is particularly well-adapted for all the decontamination processes in the pharmaceutical industry (opened bottles, instruments, Petri dishes, textiles…). All products are sterilized with the use of pure steam.

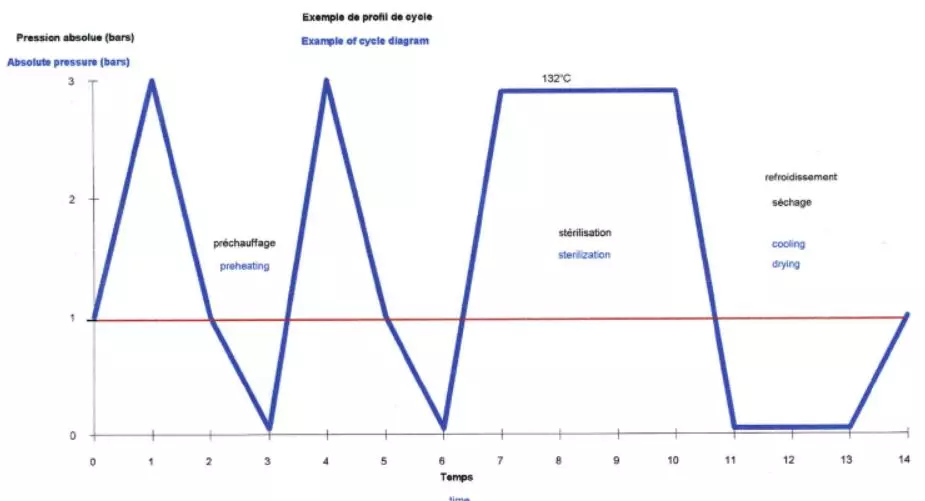

At the beginning of the cycle the air from the tank is removed by the vacuum pump (2 to 3 vacuum cycles). Then the steam is introduced at the appropriate pressure (or temperature) to sterilize the product. The heating level is met. Various phases are usually repeated 2 to 3 times. Refrigeration is realized through internal exchangers and by vacuum drying (evaporation).

Fonctionnement
Caractéristiques techniques

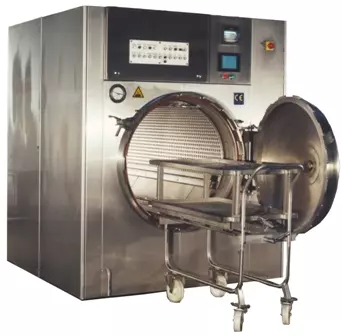

Technical characteristics

  • Material: stainless steel 304L or 316L
  • Diameters: 900 mm (capacity from 200 liters) and 1300 mm …up to 2000 mm
  • Capacity: from 200 liters
  • Maintenance: must be very regular: liquid ring vacuum pump, inflatable door seal, …
  • Control: via automaton according to your specifications
  • Liquid ring vacuum pump
  • Inflatable door seal

MPI Expert : Due to the GAMP high performance user friendly control panel, the parameters are saved automatically. A complete solution that includes control, registering as well as a digital synoptic.

Benefits

  • Pure steam sterilization with vacuum system
  • Quick refrigeration through drying, internal exchangers and final vacuuming
  • Qualification and validation by our specialized engineers.

The types of products or packaging:

  • Opened bottles
  • instruments
  • Petri dishes
  • textiles, …

To adjust the parameters to the certain environment, you may consult our specialized team for advice.

Applications

  • Surgical instrument
  • Contaminated textiles
  • Petri dishes
  • Opened bottles

Options

Accessories

Defined to fit in with the process
